SS 316Ti SOFF Backing Ring Flanges Manufacturer in India

ASME B16.5 / ANSI B16.47 150# & 300#

Stainless Steel 316Ti Backup Flange
Stainless Steel 316Ti Backing Ring Flange Manufacturer

Stainless Steel 316Ti Backing Ring Flange Manufacturer

Stainless Steel 316Ti Backing Ring Flange, SS 316Ti Backup Flange Supplier, ASME B16.5 Grade 316Ti Backing Flange Exporter, ASTM A182 SS316Ti Loose Backing Flange, ANSI B16.47 SS 316Ti Split Backup Flange, BS4504 PN10/16 Backing Ring Manufacturer in India.

Taurus Piping Solutions (TPS), a renowned Supplier, Manufacturer and Exporter of Stainless Steel 316Ti Backing Ring Flanges, provides the best quality products and solutions in an affordable range of pricing. Our brand is a global centric entity, highly focused towards providing the best out of all in the market. Our brand has become a big name in both national and international markets, mainly because of our highly efficient performance, dedication and commitment.

The most corrosion resistant iron alloys formed by introducing chromium to molten steel. It’s well suited for transporting liquid, even salt water, and certain acid contents. However, chlorinated water is enemy of stainless steel and lead to rust. This in demand materials requires the greatest cost investment but last longer in humid conditions.

SS 316Ti Backing Ring Flange Specification

  • Standard : AS 2129 Table D, E, F, H, J,K, R, S & T, ANSI, ASME, EN1092, JIS, SABS1123, GOST-12820, AS/NZS 4087
  • Dimensions : ANSI B16.5, ANSI B16.47, Series A & B
  • BS : BS4504, BS10
  • Class : 150 LBS, 300 LBS
  • Pressure : PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
  • Size : ½” (15 NB) to 48″ (1200NB)
  • Type : Backing Ring Flange / Backup Flange

Stainless Steel UNS S31635 Backing Ring Flange, SS DIN 1.4571 Backup Flange Manufacturer, Stainless Steel JIS SUS 316Ti BRF, SS GOST 08Ch17N13M2T Backup Ring, EN X6CrNiMoTi17-12-2 Backing Flange Exporter in India, AFNOR Z6CNDT17‐123 Stub Flange and Backing Ring, BS 320S31 Back Up Flanges Exporter in Australia.

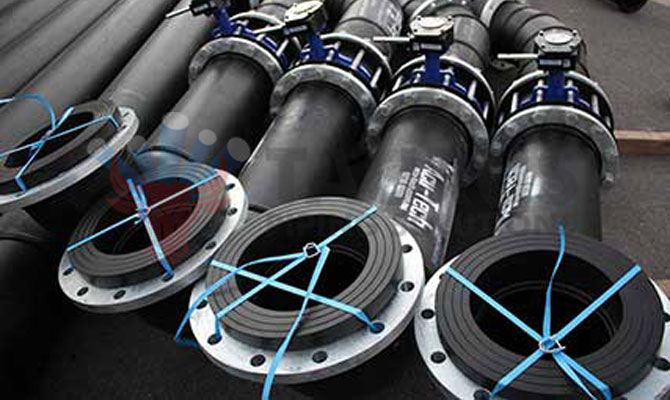

SS 316Ti Backing Flanges for use with Polyethylene (PE) pipe flange adaptors’ states, Where there is a need to join polyethylene pipe to pipe of another material or ancillary equipment such as valve, and pump then mechanicals flanges may be used. They provide not only mean of transitions but a fully end load resistant joint that can also be disassembled for the maintenance purposes.

Due to efficient offerings pertaining to high-quality and durable Stainless Steel 316Ti Backing Ring Flanges, our brand has been globally recognised as we are among the top exporters in countries such as UK, Australia, Spain, Slovakia, France, Germany, Netherlands, Nigeria, Tunisia, Namibia, Zimbabwe, Ethiopia, Mauritius, South Africa, Syria, Jordan, UAE, Lebanon, Thailand, Myanmar, Philippines, Azerbaijan, Hong Kong, Saudi Arabia, Qatar, Indonesia, Singapore.

SS 316Ti Backing Ring Flange Equivalent Grades

SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17‐123 X6CrNiMoTi17-12-2

Stainless Steel 316Ti Backup Flange Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 316Ti 0.08 max 2.0 max 0.75 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.395 min

SS 316Ti Backing Ring Flange Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

316Ti Stainless Steel Backing Ring Flanges Applications and Uses

Our Stainless Steel 316Ti Backup Flanges are used in a wide range of applications and various industries. Below are a few of them:

Power Generation
Mining Industry
Engineering & General Piping
Offshore Oil Drilling Companies
Construction & Water Pipeline
Petrochemicals & Nuclear

Other Types Of SS 316Ti Soff Backing Ring Flanges

SS 316Ti Soff Backing Ring Flange

SS 316Ti Backing Ring FlangeASTM A182 SS 316Ti Backing Ring FlangesASME B16.47 Grade 316Ti Backup FlangeBS 320S31 Backing Ring FlangesEN X6CrNiMoTi17-12-2 Backup RingAFNOR Z6CNDT17‐123 Back Up Flanges

Stainless Steel 316Ti Backup Flanges

SS 316Ti B16.5 Sorf Ring FlangeDIN 1.4571 Backup Ring FlangeUNS S31635 Backing Ring Flanges316Ti Stub Flange and Backing RingStainless Steel 316Ti BRFAS/NZS 4087 PN16 Backing Ring Flanges

Documentation & Packaging

Commercial Invoice including HS Code

Packing List including Complete Details

Certificate of Origin legalized

Material Traceability Records

Quality Assurance Plan (QAP)

Heat Treatment Charts

Material Test Certificates (MTC)

NABL approved Laboratory Test Reports

Material Testing

Mechanical Testing Such as Tensile of Area

Hardness Test

Chemical Analysis – Spectro Analysis

Positive Material Identification – PMI Testing

Flattening Test

Taurus Piping Solutions is ISO Certified Manufacturers and Suppliers of Stainless Steel 316Ti Backing Ring Flange: Weld Neck Backing Flange, BS4504 PN10/PN16 Backup Ring, BS10 Table D & Table E Backup Flange, ASA 150 Back Up Flanges, SS 316Ti Stub Flange and Backing Ring, Loose Backing Flange, Backing Ring For PVC Flange, Backing Flange PP-Steel, Backup Flange Dimensions, Split Backup Flange, Convoluted Flange/ Backup Ring, Backing Flange and Stub End, Backing Flange and Collar, ANSI Backing Flange, SS WERKSTOFF NR. 1.4571 Backing Flange Size Chart, PN16 Backing Flange Dimensions, Backing Ring For Stub Flange, IPS Backing Flange, Flange Backing Plate, Backing Flange Standard, 2 Piece Backing Flange, 4 Inch Backing Flange, Flange Adapter With Backing Ring in Australia, New Zealand, Middle East, USA, South Africa, UK.
