Galvanized Backing Ring Flanges Manufacturer in India

ASME B16.5 / ANSI B16.47 150# & 300#

Galvanized Backing Ring Flanges

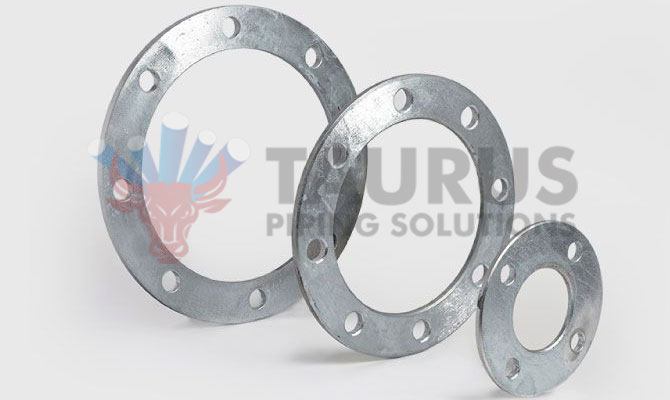

Galvanized Backing Flange Manufacturer

Galvanized Backing Flange Manufacturer

Hot Dip Galvanised Steel Backing Ring Flanges, Galvanised Table E Backing Rings Exporter, AS2129 Galvanized Back Up Flange, PN16, 235 psi Galv Backing Ring, Table D Galvanized Backing Ring Flange Manufacturer in India.

Taurus Piping Solutions (TPS) is the finest manufacturers of AS 2129 Hot Dip Galvanised Backing Ring Flanges. We offers a full range of Galvanised Backing Rings. Our range of backup flange are made of following international industry standard guidelines. Backing ring flanges is used to connects to mating flange, polyethylene pipe, and steel piping. While joining two pipes together, it is necessary to prevent leaks to ensure prompt alignment, a table D & table E galvanized backing ring flange is necessary. PN16 Galv Backing Rings are typically round, are also referred to as an backup ring or anti-extrusion ring.

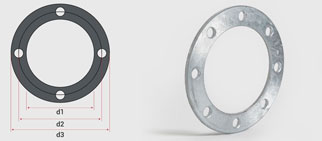

Galvanized Backing Flange Specification

  • Standard : AS 2129 Table D, E, F, H, J,K, R, S & T, ANSI, ASME, EN1092, JIS, SABS1123, GOST-12820, AS/NZS 4087
  • Dimensions : ANSI B16.5, ANSI B16.47, Series A & B
  • BS : BS4504, BS10
  • Class : 150 LBS, 300 LBS
  • Pressure : PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
  • Size : ½” (15 NB) to 48″ (1200NB)
  • Type : Backing Ring Flange / Backup Flange

Galvanised Backing Ring ANSI 150, AS2129 and AS4087 Backing Rings, Galvanised Steel Backing Ring EN1092 – PN16/PN10 Manufacturer, BS EN 1092-1 (PN16), BS10 (Table-E) and ANSI B16.5 (Class-150) Galvanized Back Up Flange Exporter in Australia.

TPS produce and exports a range of standard size backing flanges, using EN 1092-1, BS10, ANSI B16.5, ANSI 150, AS2129 and AS4087 Table D, E standards. A backing ring is a circular metal ring made of a galvanised material, with holes around the perimeter, used for disconnected and re-connected, for inspection, replacement or relocation. these product is use to hold the pipeline tightly to a valve or fitting and are often required for high-pressure pipe applications. The internal diameter of the galvanized backup ring should always be slightly larger than the outside diameter of the HDPE pipe.

Galvanized Back Up Flange Applications and Uses

Our Galvanised Backing Rings are used in a wide range of applications and various industries. Below are a few of them:

Power Generation
Mining Industry
Engineering & General Piping
Offshore Oil Drilling Companies
Construction & Water Pipeline
Petrochemicals & Nuclear

Other Types Of Galv Backing Ring Flanges

Galvanized Soff Backing Flange

ANSI 150 Galvanised Backing RingAS2129 and AS4087 Backing RingsEN1092 – PN16/PN10 Galvanised BRFBS EN 1092-1 (PN16) Galvanized Back Up FlangeBS10 (Table-E) Galvanized Backing FlangeANSI B16.5 (Class-150) Galvanized Ring Flange

Galvanized Back Up Flange

Galvanized Steel 16.5 Soff Ring FlangeGalvanized Soff Ring FlangeGalvanised Steel Backing Ring FlangesGalvanised Table E Backing RingsAS2129 Galvanized Back Up FlangePN16, 235 psi Galv Backing RingTable D Galvanized Backing Ring Flange

Documentation & Packaging

Commercial Invoice including HS Code

Packing List including Complete Details

Certificate of Origin legalized

Material Traceability Records

Quality Assurance Plan (QAP)

Heat Treatment Charts

Material Test Certificates (MTC)

NABL approved Laboratory Test Reports

Material Testing

Mechanical Testing Such as Tensile of Area

Hardness Test

Chemical Analysis – Spectro Analysis

Positive Material Identification – PMI Testing

Flattening Test
