SS 304L SOFF Backing Ring Flanges Manufacturer in India

ASME B16.5 / ANSI B16.47 150# & 300#

Stainless Steel 304L Backing Flange

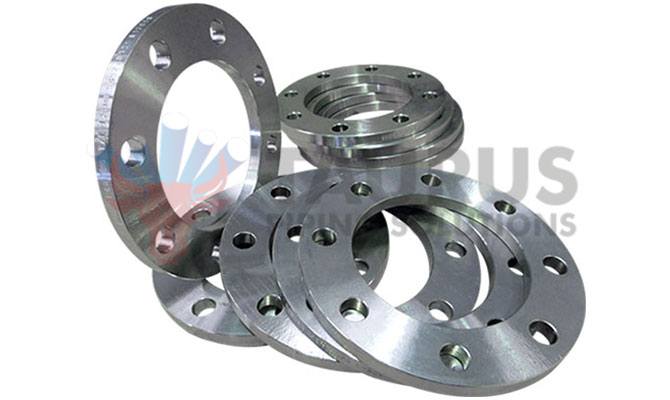

Stainless Steel 304L Backing Ring Flange Manufacturer

Stainless Steel 304L Backing Ring Flange Manufacturer

ASTM A182 Stainless Steel 304L Backing Ring Flange, SS 304L Backup Flange Supplier, ASME B16.5 Grade 304L Backing Flange Exporter, SS304L Loose Backing Flange, ANSI B16.47 SS 304L Split Backup Flange, BS 4504 PN10/16 Backing Ring Manufacturer in India.

Taurus Piping Solutions (TPS) is a prominent manufacturer and exporter of Stainless Steel 304L Backing Ring Flanges. We fabricate these SS 304L Back up Flanges using high quality raw material and latest technology in accordance with national and international quality standards. We supply these Stainless Steel 304L Flange Backing Ring in various specifications, sizes, dimensions, pressure classes and also in customized specifications as per the requirement of our clients at the most affordable prices.

SS 304L Backing Ring Flanges exhibits outstanding resistance to corrosion and has a high ease of fabrication, excellent formability. Stainless Steel 304L SOFF Backing Ring Flanges have outstanding resistance to oxidation in intermittent service to 1600 degrees F and in continuous service to 1690 degrees F, resistant to carbide precipitation. SS 304L Slip on Flat Face Backing Ring Flanges can be used in severe corrosive environments owning to it resistance to general corrosion, pitting and crevice corrosion resistance, andintergranularcorrosion resistance.

SS 304L Backing Ring Flange Specification

  • Standard : AS 2129 Table D, E, F, H, J,K, R, S & T, ANSI, ASME, EN1092, JIS, SABS1123, GOST-12820, AS/NZS 4087
  • Dimensions : ANSI B16.5, ANSI B16.47, Series A & B
  • BS : BS4504, BS10
  • Class : 150 LBS, 300 LBS
  • Pressure : PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
  • Size : ½” (15 NB) to 48″ (1200NB)
  • Type : Backing Ring Flange / Backup Flange

Stainless Steel UNS S30403 Backing Ring Flange, SS DIN 1.4306 / 1.4307 Backup Flange Manufacturer, Stainless Steel JIS SUS 304L BRF, SS GOST 03Х18Н11 Backup Ring, EN X2CrNi18-9 / X2CrNi19-11 Backing Flange Exporter in India, Grade 304L Stub Flange and Backing Ring, SS 304L Back Up Flanges Exporter in Australia.

SS UNS S30403 Backing Ring Flanges are used for applications where a low carbon content is required, such as in heavy gauge components. Stainless Steel 304L Backing Ring Flanges are used in a range of Industrial applications like Food processing equipment, Kitchen equipment and appliances, Architectural paneling, Chemical and Petrochemical Industries, Heat Exchangers, Paper and Pulp Industry, etc.

Being client-centric enterprises, we conduct thorough checking of these SS 304L SOFF Backing Ring Flanges on various quality measures in order to ensure flawless productsare supplied to our clients. We also provide various test certificate and documents along with our 304L SS Backing Ring Flanges. We at Taurus Piping Solutions are the leading 304L Stainless Steel Backing Ring Flanges Exporter in various regions like Australia,New Zealand,Dubai, Abu Dhabi, Oman, Saudi Arabia, South Africa, Canada, Qatar, Bahrain, USA, etc.

SS 304L Backing Ring Flange Equivalent Grades

SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11

Stainless Steel 304L Backup Flange Chemical Composition

Grade C Mn P S Si Cr Ni
304L 0.035 max 2.0 max 0.045 max 0.03 max 1.0 max 18 – 20 8 – 13

SS 304L Backing Ring Flange Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
SS 304L 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

304L Stainless Steel Backing Ring Flanges Applications and Uses

Our Stainless Steel 304L Backing Ring Flanges are used in a wide range of applications and various industries. Below are a few of them:

Power Generation
Mining Industry
Engineering & General Piping
Offshore Oil Drilling Companies
Construction & Water Pipeline
Petrochemicals & Nuclear

Other Types Of SS 304L Soff Backing Ring Flanges

SS 304L Soff Backing Ring Flange

SS 304L Backing Ring FlangeASTM A182 SS 304L Backing FlangeASME B16.47 Grade 304L Backup FlangeStainless Steel BS 4504 Backing Flanges EN X2CrNi18-9 Backing Ring FlangeASME SA182 SS 304L Back Up Flanges

Stainless Steel 304L Backup Flanges

SS 304L B16.5 Sorf Ring FlangeSS DIN 1.4306 / 1.4307 Backup FlangeSS UNS S30403 Backing Ring304L Stub Flange and Backing RingStainless Steel 304L BRFAS/NZS 4087 PN16 Backing Ring Flanges

Documentation & Packaging

Commercial Invoice including HS Code

Packing List including Complete Details

Certificate of Origin legalized

Material Traceability Records

Quality Assurance Plan (QAP)

Heat Treatment Charts

Material Test Certificates (MTC)

NABL approved Laboratory Test Reports

Material Testing

Mechanical Testing Such as Tensile of Area

Hardness Test

Chemical Analysis – Spectro Analysis

Positive Material Identification – PMI Testing

Flattening Test

Taurus Piping Solutions is ISO Certified Manufacturers and Suppliers of Stainless Steel 304L Backing Ring Flange: Weld Neck Backing Flange, BS4504 PN10/PN16 Backup Ring, BS10 Table D & Table E Backup Flange, ASA 150 Back Up Flanges, SS 304L Stub Flange and Backing Ring, Loose Backing Flange, Backing Ring For PVC Flange, Backing Flange PP-Steel, Backup Flange Dimensions, Split Backup Flange, Convoluted Flange/ Backup Ring, Backing Flange and Stub End, Backing Flange and Collar, ANSI Backing Flange, SS 304L Backing Flange Size Chart, PN16 Backing Flange Dimensions, Backing Ring For Stub Flange, IPS Backing Flange, Flange Backing Plate, Backing Flange Standard, 2 Piece Backing Flange, 4 Inch Backing Flange, Flange Adapter With Backing Ring in Australia, New Zealand, Middle East, USA, South Africa, UK.
