ASME B16.5 / ANSI B16.47 150# & 300#
Table of Content:

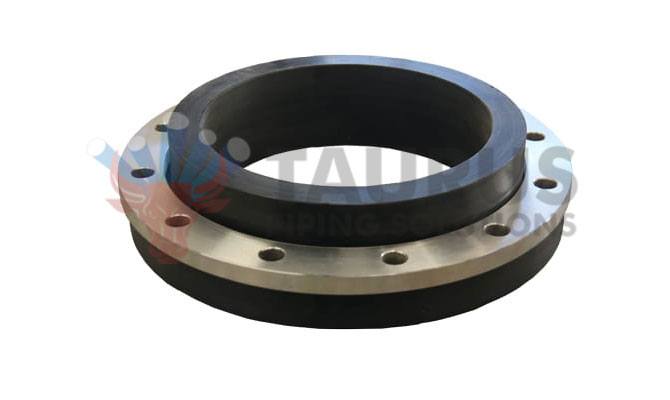

Taurus Piping Solutions are a distinguished manufacturer, and exporter of Incoloy800HT Backing Ring Flanges manufactured in accordance with national and international quality standards.Incoloy is chromium alloy with the addition of aluminum and titanium. Incoloy 800HT Backing Ring Flanges have optimum high temperature properties and are used for high temperature structural applications. Incoloy UNS NO8811 Backing Ring Flanges have superior resistance to chloride stress-corrosion cracking as well as resistance to embrittlement from precipitation of sigma phase. ASTM Incoloy 800HT Backing Ring Flanges general corrosion resistance is excellent superior creep and stress rupture properties.
Incoloy 800HT Backing Ring Flanges have various properties like superior oxidation resistance, resistance to sulfidation and carburization, higher creep and rupture properties for high temperature situations above 1100 degree F (600 Degree C), resistance to elevated temperature corrosion and prolonged readily machined by standard methods, aqueous corrosion resistance at moderate temperatures, corrosion resistance nitric and organic acid service, etc.
Incoloy 800HT Slip on Flat Face Backing Ring Flanges utilized where high surface stability is required and have an ability to function under high temperatures and mechanical stress. Incoloy 800HT SOFF Backing Ring Flanges are utilized for a wide range of high-temperature applications including hydrocarbon industrial furnace and components and equipment, equipment for heat-treating pressure vessels and heat exchangers, chemical and petrochemical processing, thermal processing fixtures, petroleum refining, power generation.
We manufacture these Incoloy 800HT Backing Ring Flanges in various sizes, specifications, pressure classes, dimensions, etc. and also in customized specifications as per the requirements of our clients at market leading prices. All Incoloy 800HT Backing Ring Flanges pass through various quality control measures at all levels.
| Standard | W.N. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 |
| Grade | C | Mn | Fe | S | Si | Cr | Ni |
|---|---|---|---|---|---|---|---|
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 39.5 min | 0.015 max | 1 max | 19.0-23.0 | 30.0-35.0 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Incoloy 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Commercial Invoice including HS Code
Packing List including Complete Details
Certificate of Origin legalized
Material Traceability Records
Quality Assurance Plan (QAP)
Heat Treatment Charts
Material Test Certificates (MTC)
NABL approved Laboratory Test Reports
Other Types Of Incoloy Alloy 800HT Soff Backing Ring Flanges
ASME B16.47 Alloy 800HT Backing Ring FlangeIncoloy 800HT Backing Ring FlangesASME B16.47 Incoloy Alloy 800HT Backup FlangeJIS NCF 800HT Backing Ring FlangesAS/NZS 4087 Backup RingAS 2129 Table D, E, F, H Grade 800HT Back Up Flanges
Alloy 800HT Sorf Ring FlangeUNS N08811 Backup Ring FlangeDIN 1.4859 / 1.4876 Backing Ring FlangesAS 2129 Table J, K, R, S, & T Stub Flange and Backing RingIncoloy 800HT BRFAS/NZS 4087 PN16 Backing Ring Flanges
