Alloy B2 SOFF Backing Ring Flanges Manufacturer in India

ASME B16.5 / ANSI B16.47 150# & 300#

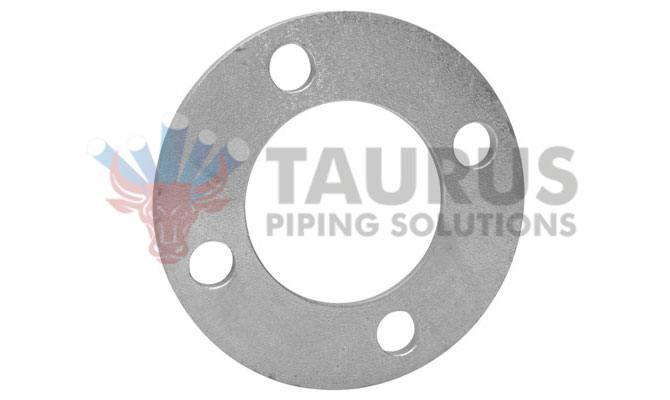

Hastelloy Alloy B2 Backup Flange
Hastelloy B2 Backing Ring Flange Manufacturer

Hastelloy B2 Backing Ring Flange Manufacturer

Hastelloy B2 Backing Flange Manufacturer, ASTM B564 Hastelloy B2 Backing Ring Flanges, Alloy B2 Backup Flange Exporter, ASME B16.5 / ANSI B16.47 Hastelloy B2 Backing Flange, Hastelloy B2 Loose Backing Flange, B2 Hastelloy BS 4504 Split Backup Flange Manufacturer in India.

Taurus Piping Solutions (TPS) is one of the leading manufacturer and exporter of Hastelloy B2 Backing Ring Flanges manufactured in accordance with globally accepted quality standards. We fabricate these flanges using superior quality raw materials and advanced technology equipment under the guidance of our professional team. We manufacture these B2 Hastelloy Backing Ring Flanges in various sizes, specifications, pressure classes, dimensions and also in customized configuration as per the requirements of various industries at the most reasonable price within a short period of time.

Hastelloy B2 SOFF Backing Ring Flanges demonstrate superior tolerance to reducing conditions such as hydrogen chloride gas and sulfuric, acetic and phosphoric acids. Hastelloy UNS N10665 Backing Ring Flanges offer resistance to pure sulphuric acid and a variety of non-oxidizing acids. Hastelloy B2 Slip on Flat Face Backing Ring Bands have excellent resistance to hydrochloric acid, aluminium chloride catalysts and other highly reducing chemicals and outstanding elevated temperatures strength in different atmospheres.

Hastelloy B2 Backing Ring Flange Specification

  • Standard : AS 2129 Table D, E, F, H, J,K, R, S & T, ANSI, ASME, EN1092, JIS, SABS1123, GOST-12820, AS/NZS 4087
  • Dimensions : ANSI B16.5, ANSI B16.47, Series A & B
  • BS : BS4504, BS10
  • Class : 150 LBS, 300 LBS
  • Pressure : PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
  • Size : ½” (15 NB) to 48″ (1200NB)
  • Type : Backing Ring Flange / Backup Flange

Hastelloy B2 BRF, Alloy B2 EN 1092-1 Backing Ring Flanges Exporter in India, Hastelloy Alloy B2 Backup Ring, B2 Hastelloy Stub Flange and Backing Ring Manufacturer, Hastelloy DIN 2.4617 Backing Ring Flange, Hastelloy UNS N10665 Back Up Flanges, Nickel Alloy B2 Backing Flanges Exporter in Australia.

Hastelloy B2 Backing Ring Flanges are especially suitable for equipment handling chemical-reducing conditions it can also be used for applications in the chemical manufacturing industries, particularly in the production of acetic acid, herbicides, insecticides, ethylene glycol and ethyl benzene. It is also used in the production of high-octane gasoline. Hastelloy B2 Flange Backing Ring are also used in Pressure vessels and reactors, Agitators and mixers, Pumps and valves, Gaskets, Pipe work and pipe spools, Heat exchangers, etc.

We conduct various tests on our flanges to ensure only superior quality flanges are delivered to our clients. Taurus Piping Solutions is the leading Hastelloy B2 Backing Ring Flanges exporter in various regions such as Oman, Saudi Arabia, South Africa, Australia , New Zealand, Dubai , Abu Dhabi, Canada, Qatar , Bahrain, USA, etc.

Hastelloy B2 Backing Ring Flange Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy B2 2.4617 N10665 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760

B2 Hastelloy Backup Flange Chemical Composition

Grade C Mn Si S Co Ni Cr Fe Mo P
B2 0.010 max 1.00 max 0.08 max 0.03 max 2.50 max 50.99 min* 14.50 – 16.50 4.00 – 7.00 15.00 – 17.00 0.04 max

Hastelloy B2 Backing Ring Flange Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy B2 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %

Hastelloy B2 Backing Ring Flanges Applications and Uses

Our Hastelloy Alloy B2 Backing Ring Flanges are used in a wide range of applications and various industries. Below are a few of them:

Refineries
Power Generation
Mining Industry
Engineering & General Piping
Offshore Oil Drilling Companies
Pharmaceuticals
Construction & Water Pipeline
Petrochemicals & Nuclear

Other Types Of Hastelloy Alloy B2 Soff Backing Ring Flanges

Hastelloy Alloy B2 Soff Backing Ring Flange

Hastelloy B2 Backing Ring FlangeASTM B564 Hastelloy B2 Backing Ring FlangesASME B16.47 Alloy B2 Backing Ring FlangeB2 Hastelloy BS 4504 Backing Ring FlangesAlloy B2 EN 1092-1 Backing Ring FlangeASME SB564 Hastelloy Alloy B2 Backing Ring Flange

Hastelloy Alloy B2 Backup Flanges

Hastelloy B2 16.5 Soff Ring FlangeHastelloy B2 Soff Ring FlangeUNS N10665 Backing Ring FlangesAlloy DIN 2.4617 Backing Ring FlangeNickel Alloy B2 BRFAS/NZS 4087 PN16 Alloy B2 Backing Ring Flanges

Documentation & Packaging

Commercial Invoice including HS Code

Packing List including Complete Details

Certificate of Origin legalized

Material Traceability Records

Quality Assurance Plan (QAP)

Heat Treatment Charts

Material Test Certificates (MTC)

NABL approved Laboratory Test Reports

Material Testing

Mechanical Testing Such as Tensile of Area

Hardness Test

Chemical Analysis – Spectro Analysis

Positive Material Identification – PMI Testing

Flattening Test

Taurus Piping Solutions is ISO Certified Manufacturers and Suppliers of Hastelloy Alloy B2 Backing Ring Flange: Weld Neck Backing Flange, BS4504 PN10/PN16 Backup Ring, BS10 Table D & Table E Backup Flange, ASA 150 Back Up Flanges, Hastelloy Alloy B2 Stub Flange and Backing Ring, Loose Backing Flange, Backing Ring For PVC Flange, Backing Flange PP-Steel, Backup Flange Dimensions, Split Backup Flange, Convoluted Flange/ Backup Ring, Backing Flange and Stub End, Backing Flange and Collar, ANSI Backing Flange, Hastelloy Alloy B2 Backing Flange Size Chart, PN16 Backing Flange Dimensions, Backing Ring For Stub Flange, IPS Backing Flange, Flange Backing Plate, Backing Flange Standard, 2 Piece Backing Flange, 4 Inch Backing Flange, Flange Adapter With Backing Ring in Australia, New Zealand, Middle East, USA, South Africa, UK.
